| Code | R3-3108 | |
|---|---|---|
| Pid | http://hdl.handle.net/11708/055B5782-BC9E-4CBD-854E-C58757DC2A2D | |
| InventarNo | 30600 | |
| SerialNo | 6633 | |
| Status | defect | |
| Program | gipp | |
| Owner | GFZ.sec22 | |
| Location | Earth Data | |
| Deliverydate | 2013-12-11 | |
| Comment | Defect flash storage (device 'mtda') or at least a corrupt file system on that device. Probably both! Cannot write to the file system (nor delete defective files). EDR will boot but not start the 'recorder' software. When trying to start the software manually from the console, the system will freeze with segmentation faults. Cannot create a new file system as I don't know the (hardware) parameter to correctly format the flash storage. (Assuming it's a file system problem only and not a hardware fault.) Diese EDR ist seit dem 12.4.2023 bei Earth Data zur Reparatur. | |
| Country of Origin | UK | |
| Manufacturer | Earth Data | |
| Dualuse | no | |
| Customs tariff | 90158020 | |
| Export Control Classification Number (ECCN) | ||
| Hazmat | none | |
| firmware | V3.36 | |
| gpsVersion | ||
| diskSize | 32GB | |
| ip | 172.22.3.108 | |
| mac | 00:500:50:c2:a2:81:8b | |
| lastChecked | 2022-12-01 CL | |
| input unit | Volt | |
| output unit | count | |
| weight (kg) | 1.8 | |
| description | Full data recorder (3 channels) with external power supply and external GPS antenna | |
| components | 3 | |
| sample rates (Hz) | 1, 2, 4, 5, 10, 20, 25, 40, 50, 75, 100, 120, 150, 200, 250, 300, 375, 500, 600, 750, 1000, 3000 | |
| data storage | solid state disk, removeable | |
| data download | hard drive exchange; interfaces | |
| power supply (V DC) | 10.5 – 28 | |
| min temperature (deg C) | -20 | |
| max temperature (deg C) | 60 | |
| environment | land | |
| power consumption (W) | 0.8 | |
| near real time data transfer | possible (Seedlink, modem) |
| name | last change | type | size | |
|---|---|---|---|---|

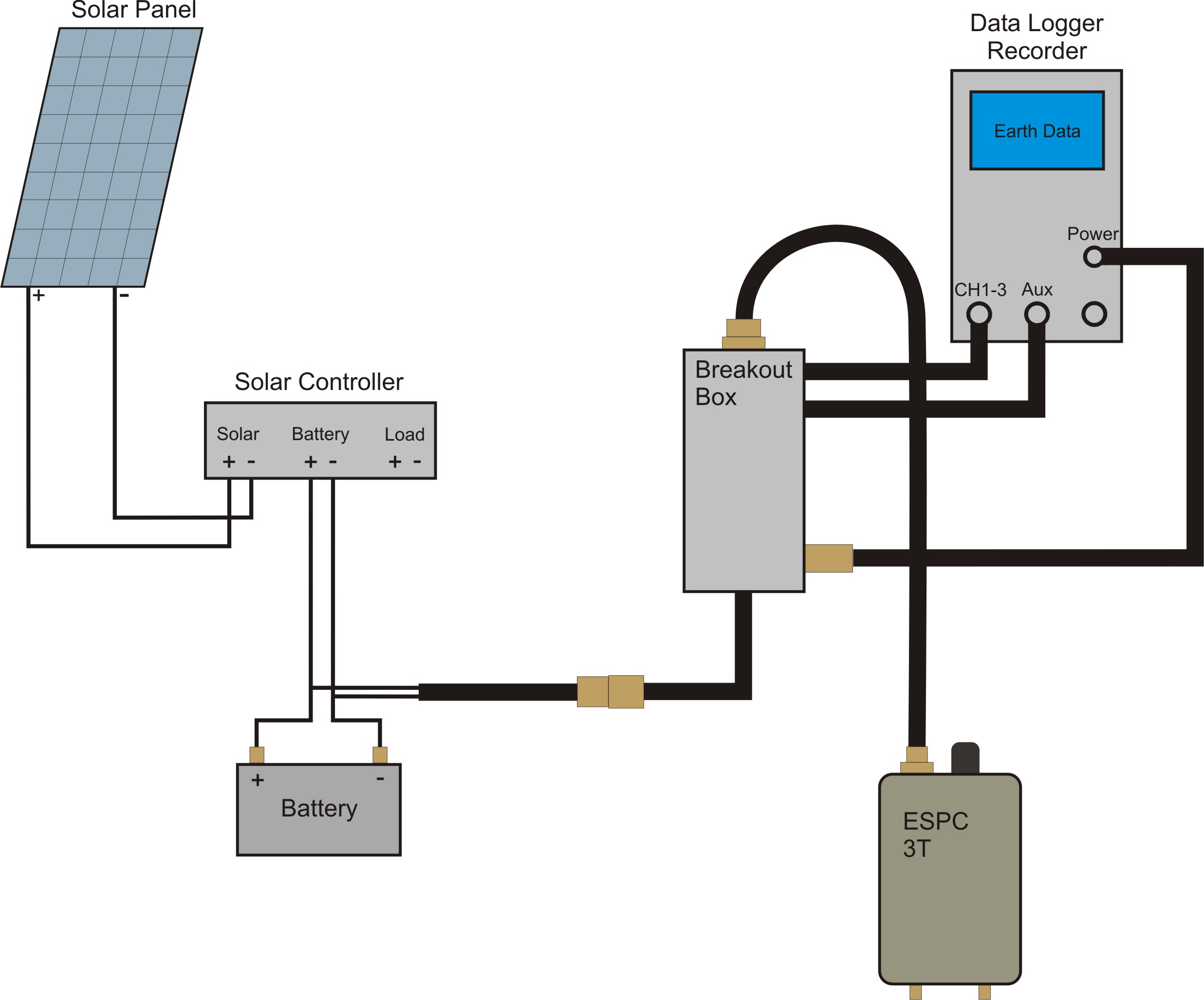

| Stationsaufbau_GC_EDL.jpg | 2021-05-31 08:25:38 | image/jpeg | 234221 | |
| Verkabelung_12_02_2014.pdf | 2021-05-31 08:25:38 | application/pdf | 7391556 | |
| aufbau_EDR_panele.pdf | 2021-05-31 08:25:38 | application/pdf | 1379840 |
