Code R3-3110
Pid http://hdl.handle.net/11708/9BEDD591-A125-420D-826E-DAD01F2DE3A3
InventarNo 30584
SerialNo 6635
Status OK
Program gipp
Owner GFZ.sec22
Location
Deliverydate 2013-12-18
Comment test: 2022-11-02, 2022-11-15
Country of Origin UK
Manufacturer Earth Data
Dualuse no
Customs tariff 90158020
Export Control Classification Number (ECCN)
Hazmat none
firmware 3.38
gpsVersion
diskSize 32GB
ip 172.22.3.110
mac
input unit Volt
output unit count
weight (kg) 1.8
description Full data recorder (3 channels) with external power supply and external GPS antenna
components 3
sample rates (Hz) 1, 2, 4, 5, 10, 20, 25, 40, 50, 75, 100, 120, 150, 200, 250, 300, 375, 500, 600, 750, 1000, 3000
data storage solid state disk, removeable
data download hard drive exchange; interfaces
power supply (V DC) 10.5 – 28
min temperature (deg C) -20
max temperature (deg C) 60
environment land
power consumption (W) 0.8
near real time data transfer possible (Seedlink, modem)
name last change type size

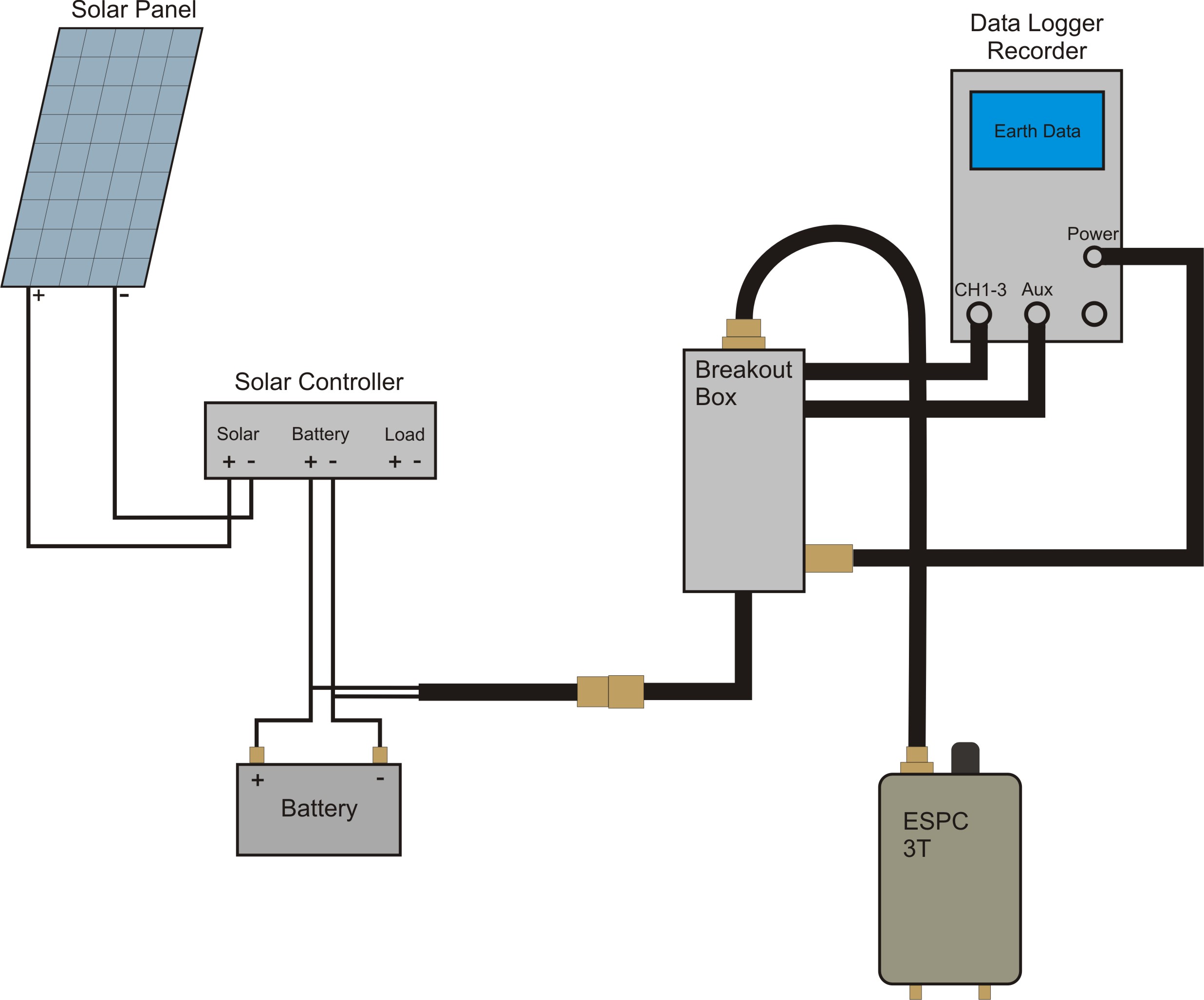

Stationsaufbau_GC_EDL.jpg  2021-05-31 08:25:38  image/jpeg  234221
Verkabelung_12_02_2014.pdf  2021-05-31 08:25:38  application/pdf  7391556
aufbau_EDR_panele.pdf  2021-05-31 08:25:38  application/pdf  1379840
