Code R3-3131
Pid http://hdl.handle.net/11708/BE581FAB-C6C8-4E60-B83C-FD70C8E8EB54
InventarNo 31525
SerialNo 6756
Status OK
Program gipp
Owner GFZ.sec22
Location
Deliverydate 2014-12-23
Comment 2021-11-15 Test okay. Buchsendeckel fehlt 2023-01--24 Test okay
Country of Origin UK
Manufacturer Earth Data
Dualuse no
Customs tariff 90158020
Export Control Classification Number (ECCN)
Hazmat none
firmware 3.38
gpsVersion Condor (Release 2017-03-14)
diskSize 32GB MLC
ip 172.22.3.131
mac 00:50:C2:A2:82:0F
lastChecked 2023-01-24 CL
input unit Volt
output unit count
weight (kg) 1.8
description Full data recorder (3 channels) with external power supply and external GPS antenna
components 3
sample rates (Hz) 1, 2, 4, 5, 10, 20, 25, 40, 50, 75, 100, 120, 150, 200, 250, 300, 375, 500, 600, 750, 1000, 3000
data storage solid state disk, removeable
data download hard drive exchange; interfaces
power supply (V DC) 10.5 – 28
min temperature (deg C) -20
max temperature (deg C) 60
environment land
power consumption (W) 0.8
near real time data transfer possible (Seedlink, modem)
name last change type size

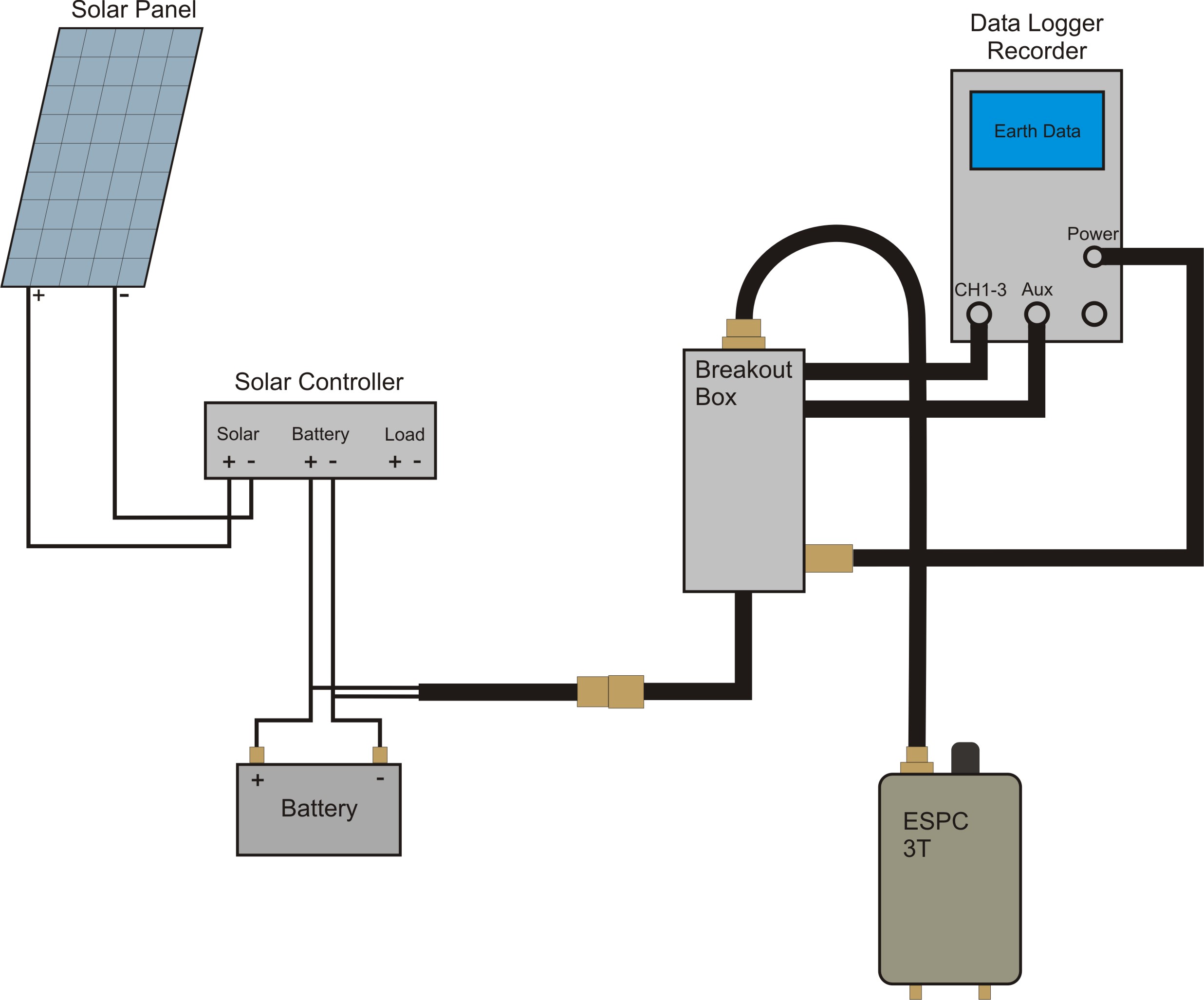

Stationsaufbau_GC_EDL.jpg  2021-05-31 08:25:38  image/jpeg  234221
Verkabelung_12_02_2014.pdf  2021-05-31 08:25:38  application/pdf  7391556
aufbau_EDR_panele.pdf  2021-05-31 08:25:38  application/pdf  1379840
