| Code | R6-6004 | |
|---|---|---|
| Pid | http://hdl.handle.net/11708/A05CB9F1-A90F-4E72-9744-3DA7BB8625EA | |
| InventarNo | 3313132 | |
| SerialNo | 6898 | |
| Status | defect | |
| Program | gipp | |
| Owner | GFZ.sec22 | |
| Location | ||
| Deliverydate | 2017-02-13 | |
| Comment | Problem: Ein abgerissenes Poti im Schaltkreise eines Kanals (welcher?) wurde von Matthias Bosdorf durch zwei Widerstände ersetzt. Prinzipiell funktioniert das Gerät, die Aufzeichnungskanäle sollten aber getestet werden (wie!?!) WICHTIG! Wegen obigem Problem bis auf weiteres erst einmal nur Einsatz als (internes) Testgerät! 2025-04-08 Test okay (abzüglich obiges Problem) | |
| Country of Origin | UK | |
| Manufacturer | Earth Data | |
| Dualuse | no | |
| Customs tariff | 90158020 | |
| Export Control Classification Number (ECCN) | ||
| Hazmat | none | |
| firmware | 3.38 | |
| gpsVersion | ||
| diskSize | 32GB | |
| ip | 172.22.6.4 | |
| mac | 00:50:C2:A2:82:C6 | |
| lastChecked | 2025-04-08 CL | |
| input unit | Volt | |
| output unit | count | |
| weight (kg) | 1.8 | |
| description | Full data recorder (3 channels) with external power supply and external GPS antenna | |
| components | 3 | |
| sample rates (Hz) | 1, 2, 4, 5, 10, 20, 25, 40, 50, 75, 100, 120, 150, 200, 250, 300, 375, 500, 600, 750, 1000, 3000 | |
| data storage | solid state disk, removeable | |
| data download | hard drive exchange; interfaces | |
| power supply (V DC) | 10.5 – 28 | |
| min temperature (deg C) | -20 | |
| max temperature (deg C) | 60 | |
| environment | land | |
| power consumption (W) | 0.8 | |
| near real time data transfer | possible (Seedlink, modem) |
| name | last change | type | size | |
|---|---|---|---|---|

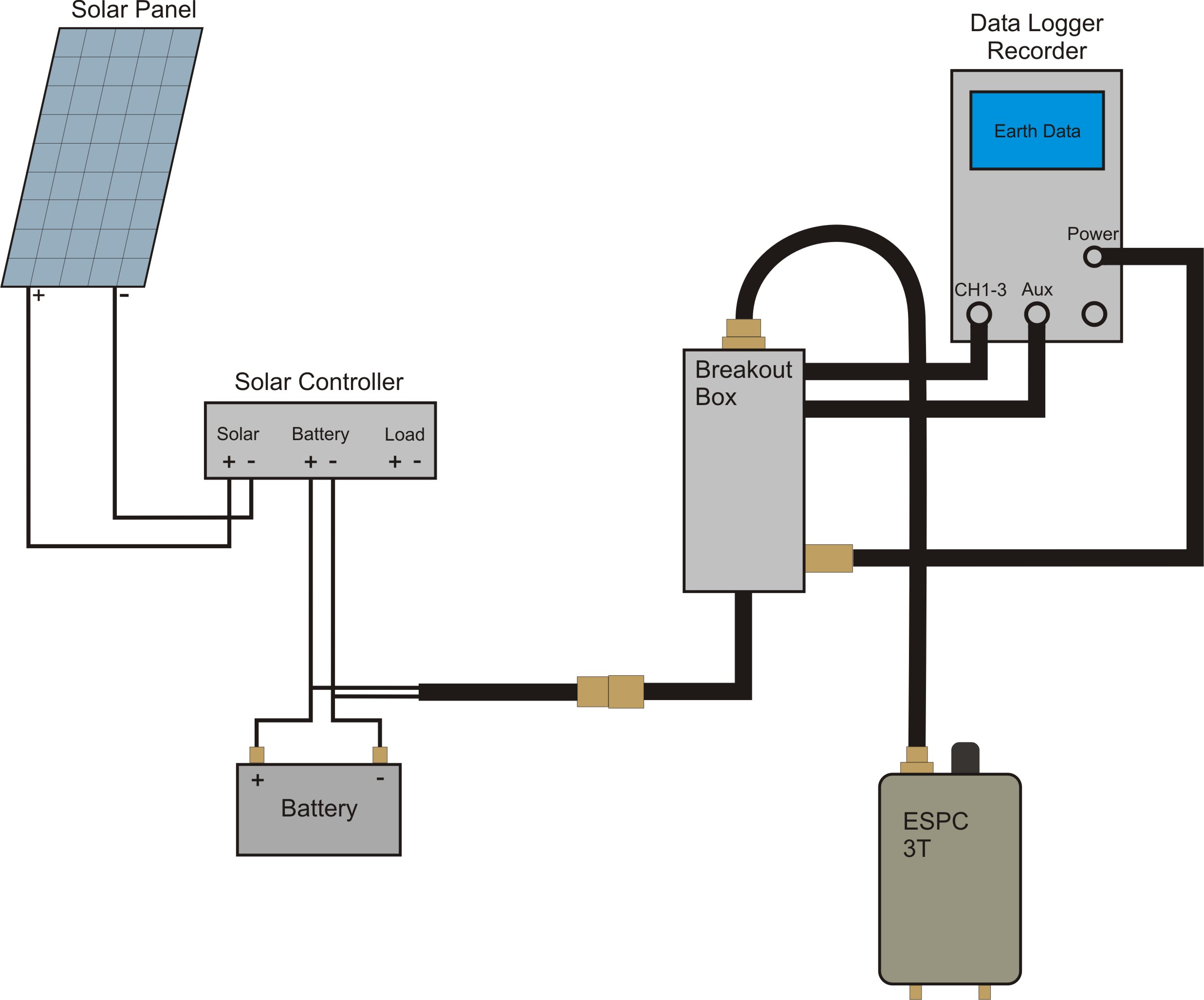

| Stationsaufbau_GC_EDL.jpg | 2021-05-31 08:25:38 | image/jpeg | 234221 | |
| Verkabelung_12_02_2014.pdf | 2021-05-31 08:25:38 | application/pdf | 7391556 | |
| aufbau_EDR_panele.pdf | 2021-05-31 08:25:38 | application/pdf | 1379840 |
