| Code | R3-3133 | |
|---|---|---|
| Pid | ||
| InventarNo | 3314943 | |
| SerialNo | 6934 | |
| Status | defect | |
| Program | gipp | |
| Owner | GFZ.sec22 | |
| Location | Earth Data | |
| Deliverydate | 2019-12-05 | |
| Comment | Das 'recorder' Programm scheint die USB Platte bzw. das Dateisystem nicht zu sehen. (ACT geht nicht aus, vermutlich weil die EDR die Daten im Speicher nicht los wird.) Während des Bootens jedoch wird die Wechselplatte (einmalig) gemounted! Ein 'ls /mnt/data/usba' bzw. das 'fdisk -l /dev/sda' Kommando funktionieren zu diesem Zeitpunkt. So finden sich auch zwei einzelne Dateien aus '/var/log' auf der USB Platte (aber sonst nichts). Selbige werden von Christofs 'usbdisk' Skript, kurz vor dem ersten Ausschalten des USB Ports, dorthin kopiert! Prinzipiell funktioniert die USB Platte also. Nach dem ersten Ausschalten des USB Ports wird die Wechelplatte jedoch nie wieder vom Betriebssystem wahrgenommen. Auch händisches Mounten funktioniert nicht! Diese EDR ist seit dem 12.4.2023 bei Earth Data zur Reparatur. | |
| Country of Origin | UK | |
| Manufacturer | Earth Data | |
| Dualuse | no | |
| Customs tariff | 90158020 | |
| Export Control Classification Number (ECCN) | ||
| Hazmat | none | |
| diskSize | 8GB | |
| firmware | 3.38 | |
| gpsVersion | ||
| ip | 172.22.3.133 | |
| mac | ||
| status | ||
| lastChecked | 2023-01-09 CL | |
| input unit | Volt | |
| output unit | count | |
| weight (kg) | 1.8 | |
| description | Full data recorder (3 channels) with external power supply and external GPS antenna | |
| components | 3 | |
| sample rates (Hz) | 1, 2, 4, 5, 10, 20, 25, 40, 50, 75, 100, 120, 150, 200, 250, 300, 375, 500, 600, 750, 1000, 3000 | |
| data storage | solid state disk, removeable | |
| data download | hard drive exchange; interfaces | |
| power supply (V DC) | 10.5 – 28 | |
| min temperature (deg C) | -20 | |
| max temperature (deg C) | 60 | |
| environment | land | |
| power consumption (W) | 0.8 | |
| near real time data transfer | possible (Seedlink, modem) |
| name | last change | type | size | |
|---|---|---|---|---|

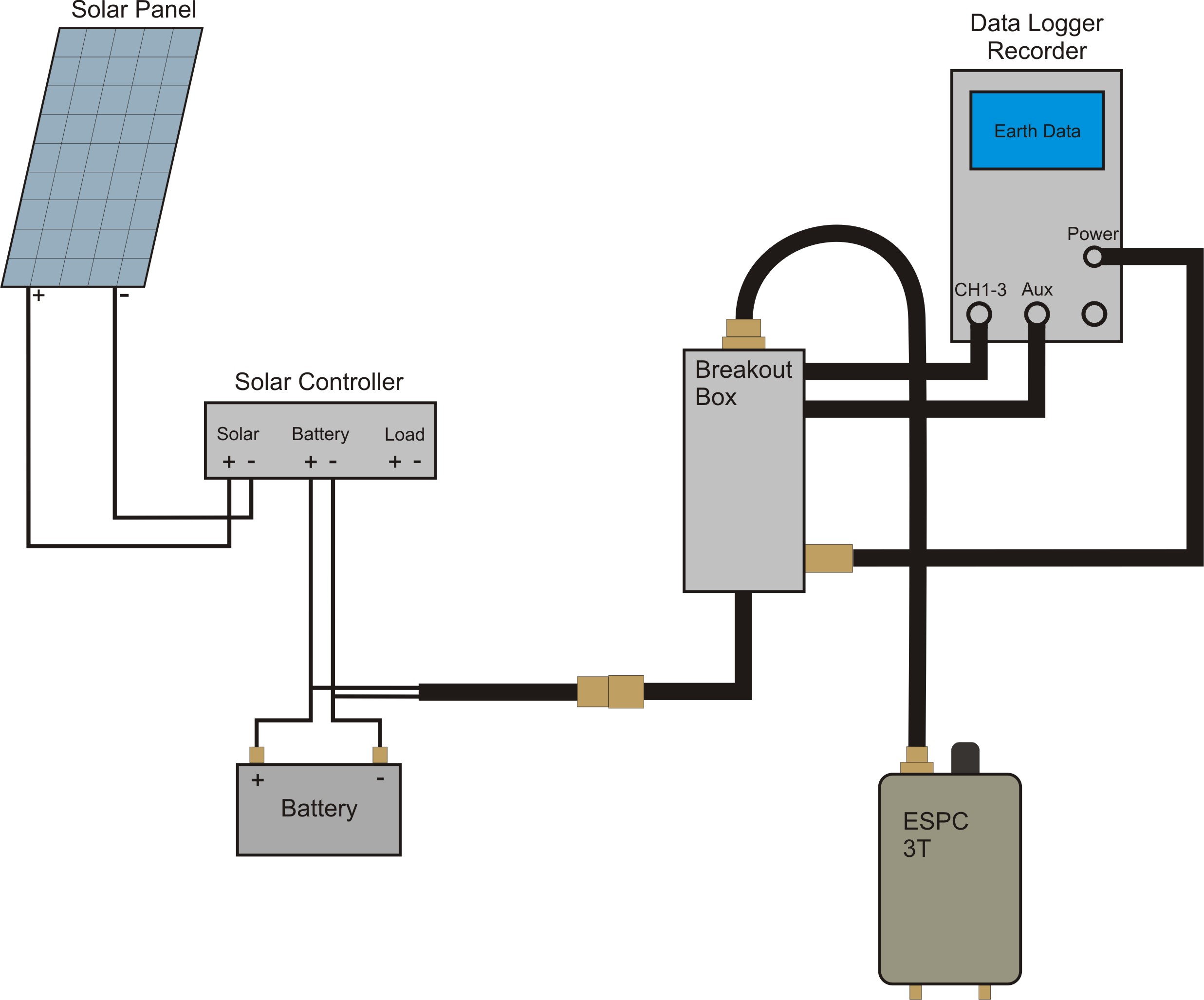

| Stationsaufbau_GC_EDL.jpg | 2021-05-31 08:25:38 | image/jpeg | 234221 | |
| Verkabelung_12_02_2014.pdf | 2021-05-31 08:25:38 | application/pdf | 7391556 | |
| aufbau_EDR_panele.pdf | 2021-05-31 08:25:38 | application/pdf | 1379840 |
