| Code | R3-3137 | |
|---|---|---|
| Pid | ||
| InventarNo | 3314947 | |
| SerialNo | 6938 | |
| Status | defect | |
| Program | gipp | |
| Owner | GFZ.sec22 | |
| Location | Earth Data | |
| Deliverydate | 2019-12-05 | |
| Comment | The EDR forgot (partly) it's firmware. When trying to save firmware variables using the 'setenv' command they are gone after a reboot. Sometimes, the 'setenv' command has no effect at all. (Using the 'printenv' command to see if the changes were accepted.) Because the firmware variables are incomplete, the EDR will not startup and is stuck in U-Boot. | |
| Country of Origin | UK | |
| Manufacturer | Earth Data | |
| Dualuse | no | |
| Customs tariff | 90158020 | |
| Export Control Classification Number (ECCN) | ||
| Hazmat | none | |
| diskSize | 8GB | |
| firmware | 3.38 | |
| gpsVersion | ||
| ip | 172.22.3.137 | |
| mac | ||
| lastChecked | 2022-11-30 CL | |
| input unit | Volt | |
| output unit | count | |
| weight (kg) | 1.8 | |
| description | Full data recorder (3 channels) with external power supply and external GPS antenna | |
| components | 3 | |
| sample rates (Hz) | 1, 2, 4, 5, 10, 20, 25, 40, 50, 75, 100, 120, 150, 200, 250, 300, 375, 500, 600, 750, 1000, 3000 | |
| data storage | solid state disk, removeable | |
| data download | hard drive exchange; interfaces | |
| power supply (V DC) | 10.5 – 28 | |
| min temperature (deg C) | -20 | |
| max temperature (deg C) | 60 | |
| environment | land | |
| power consumption (W) | 0.8 | |
| near real time data transfer | possible (Seedlink, modem) |
| name | last change | type | size | |
|---|---|---|---|---|

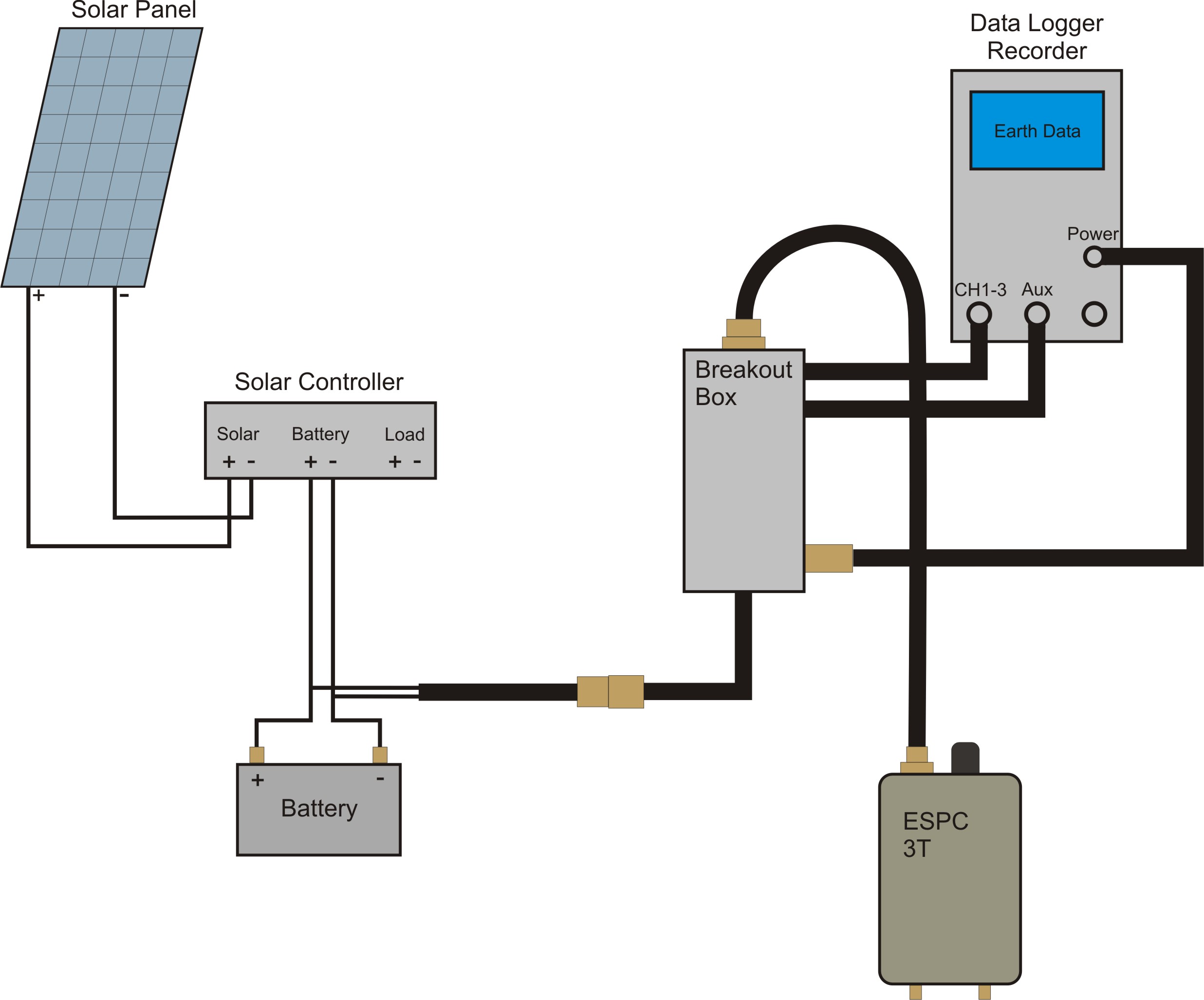

| Stationsaufbau_GC_EDL.jpg | 2021-05-31 08:25:38 | image/jpeg | 234221 | |
| Verkabelung_12_02_2014.pdf | 2021-05-31 08:25:38 | application/pdf | 7391556 | |
| aufbau_EDR_panele.pdf | 2021-05-31 08:25:38 | application/pdf | 1379840 |
